Soundmaster EliteLine PL790SW turntable preamplifier Bluetooth Audio Technica magnetic pickup system
Couldn't load pickup availability
Sichere Bezahlung

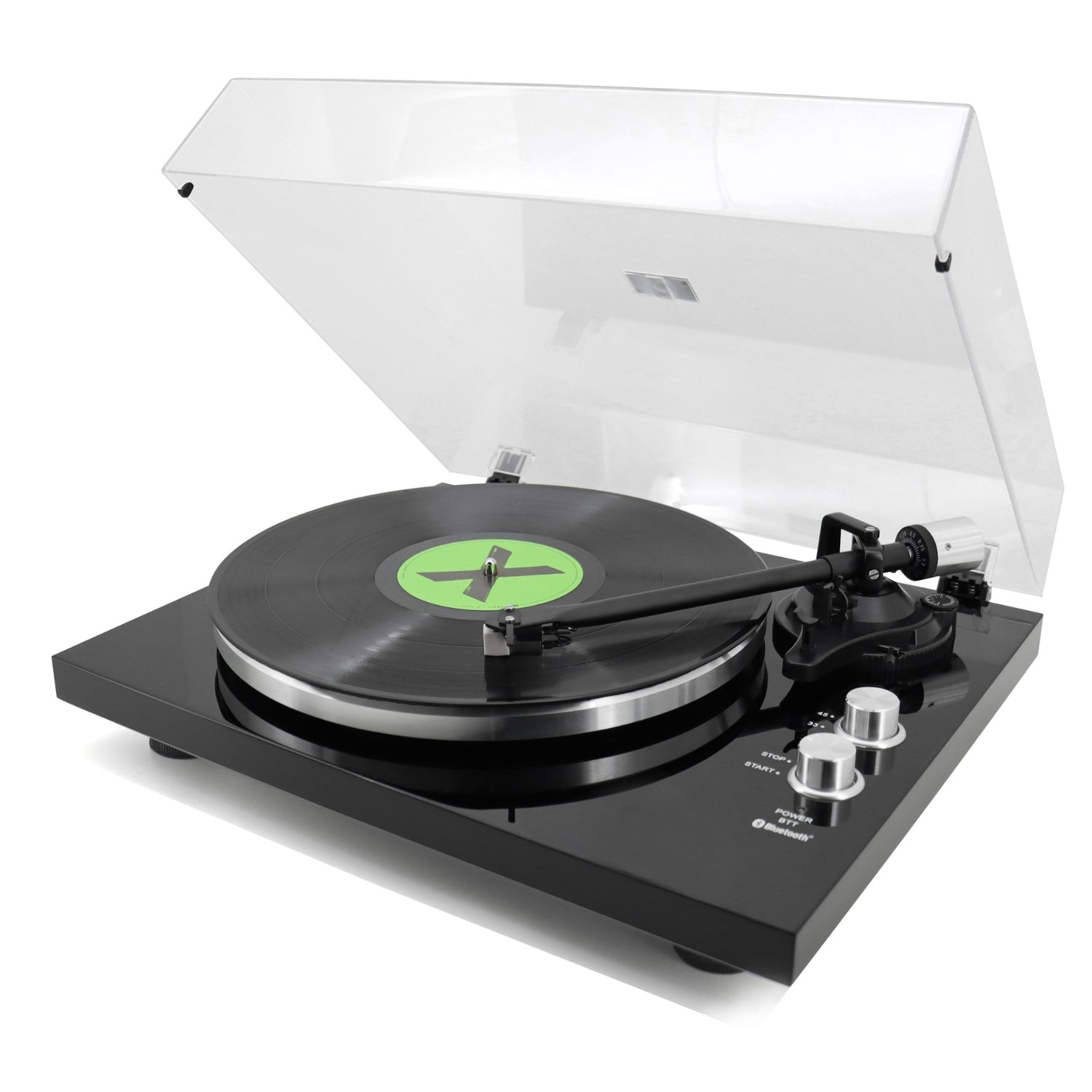

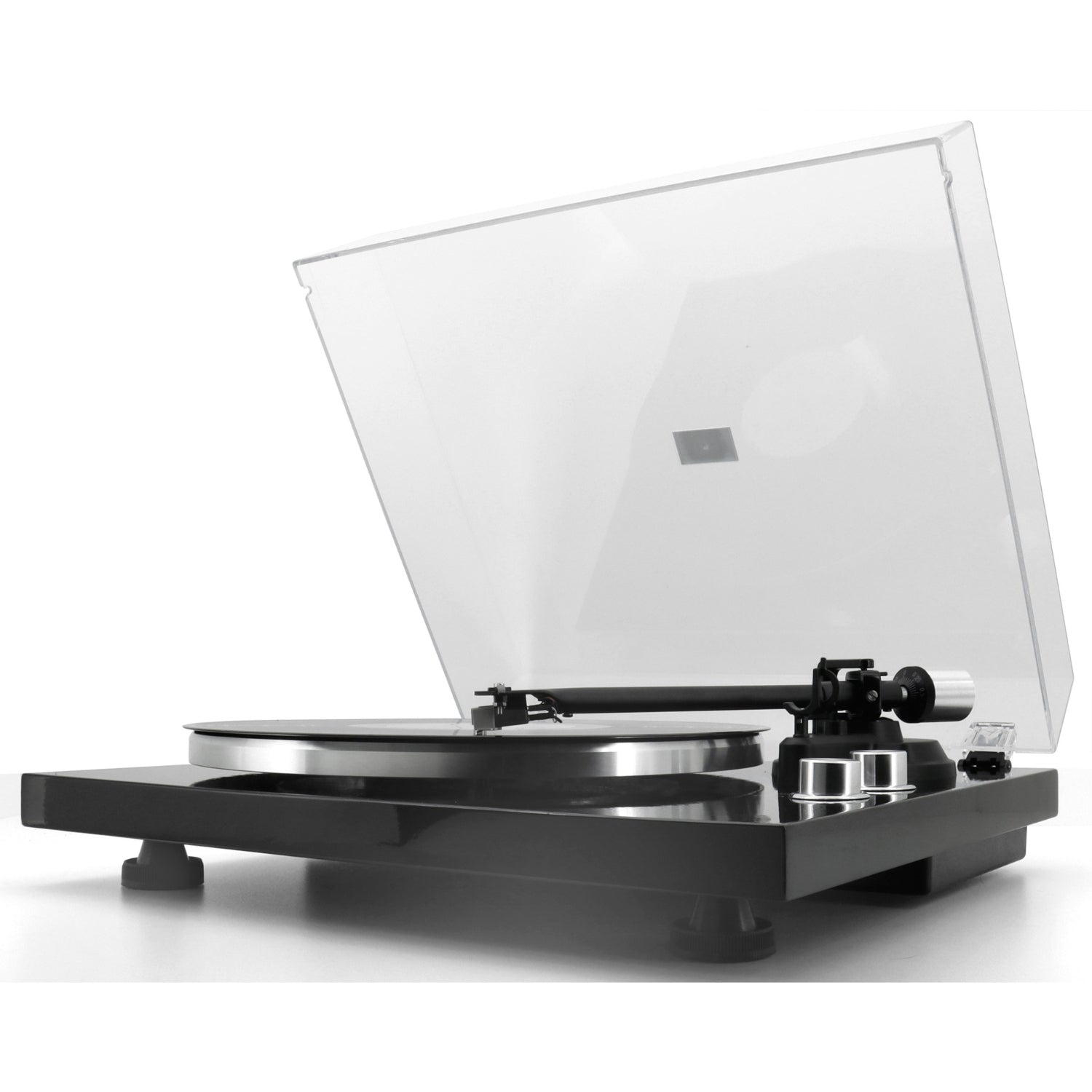

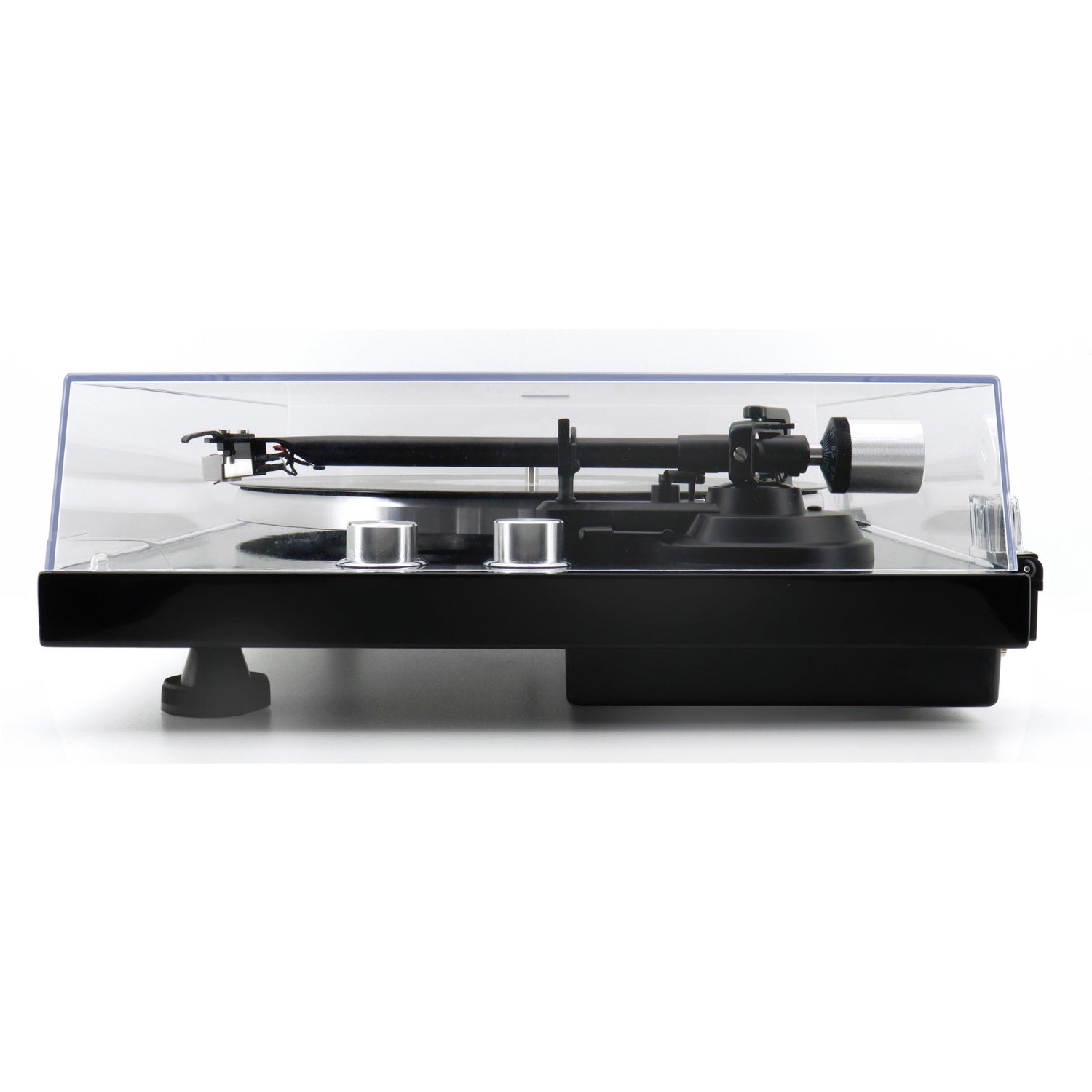

Soundmaster PL790SW – turntable music system
The Soundmaster EliteLine PL790SW is the perfect choice for vinyl lovers who want to combine audiophile tradition and innovative technology in a timeless design. The high-quality chassis made of low-resonance resin effectively suppresses disruptive vibrations and, combined with the solid aluminum platter, ensures absolutely stable speed consistency.
The technological highlight of this manual turntable is its integrated Bluetooth® transmitter function: wirelessly stream the warm sound of your records directly to your Bluetooth headphones, soundbars, or external speakers. Thanks to Audio Technica's premium moving-magnet system (MM), you can enjoy the finest sound details and precise tracking that bring your vinyl collection to life in a whole new dimension.
Highlights
- Manual belt-drive turntable with 2 speeds (33 / 45 RPM)

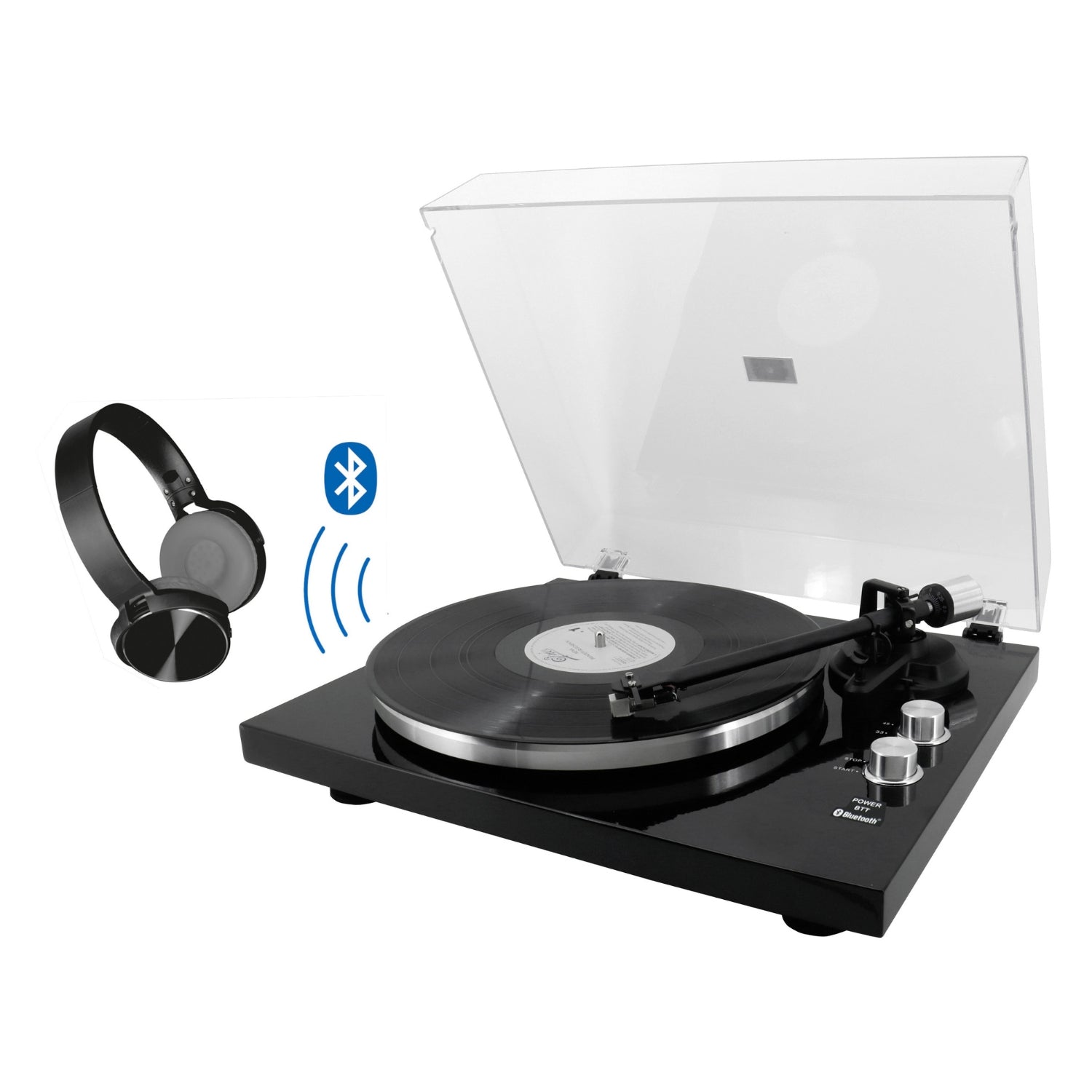

- Bluetooth® transmitter function for wireless streaming to headphones or speakers
- Premium Audio Technica moving-magnet cartridge (MM) for high-fidelity sound
- Solid aluminum platter for stable operation and minimized vibrations
- Low-resonance resin housing for outstanding acoustic isolation
- Built-in phono preamp, switchable (PHONO / LINE OUT)
- Adjustable tonearm counterweight for optimal tracking
- Adjustable anti-skating function to prevent distortion
- Damped tonearm lift for safe and precise stylus placement
- RCA audio output for connection to classic amplifiers
- High-quality dust cover included to protect your valuable hardware
What's included
- Soundmaster EliteLine PL790SW
- Dust cover
- Turntable mat
- 45 RPM adapter (puck)
- AC/DC power adapter (12 V / 0.5 A)
- User manual
Technical specifications
| Device type | Manual hi-fi turntable |
| Drive | Belt drive |
| Speeds | 33 / 45 RPM (revolutions per minute) |
| Cartridge system | Audio Technica moving magnet (MM) |
| Replacement stylus type | NADEL09 (Audio Technica system) |
| Turntable | Solid aluminum |
| Housing material | Stable, low-resonance resin |
| Bluetooth specification | Transmission function (transmitter) |
| Preamplifier | Integrated, switchable (Phono / Line-Out) |

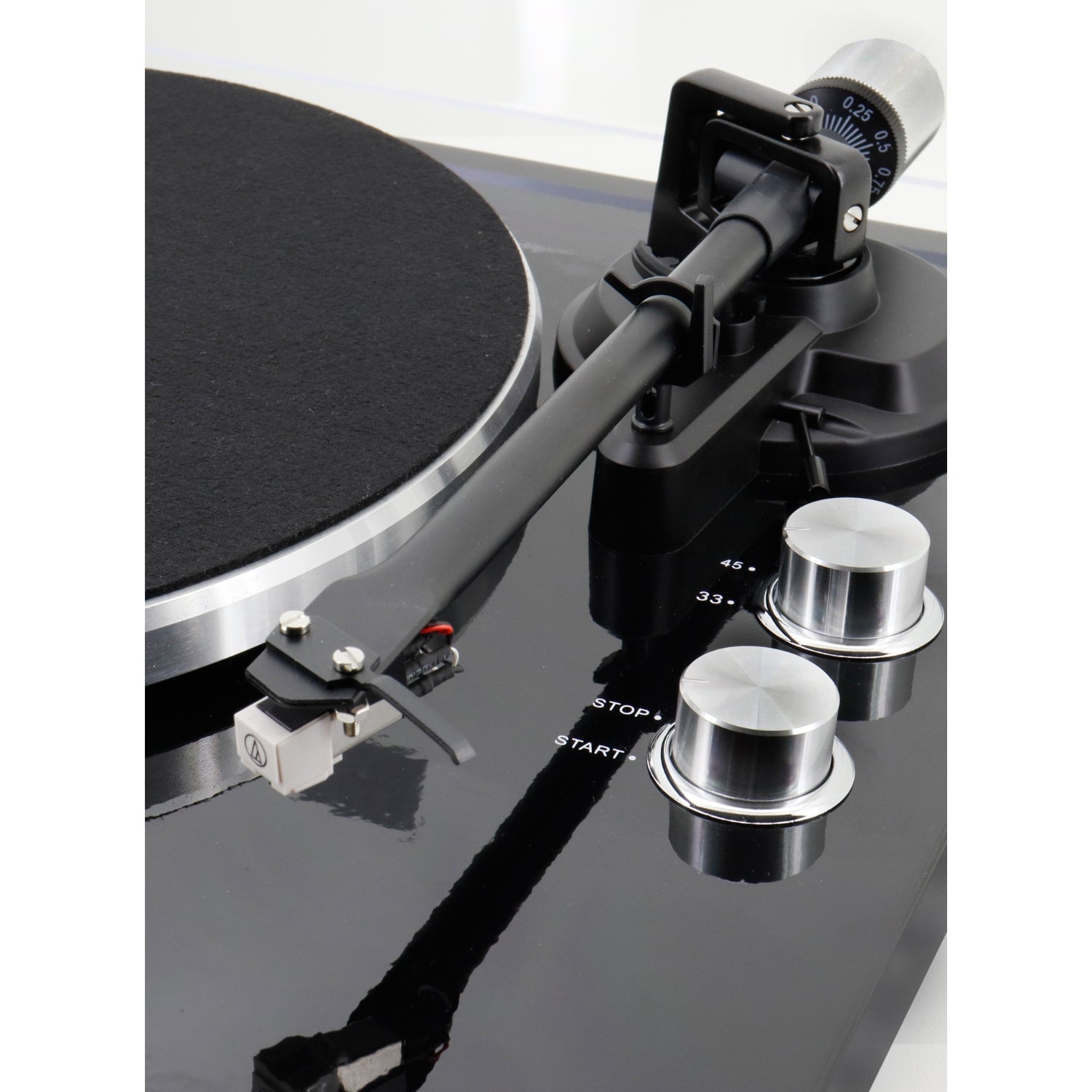

| Tonearm functions | Tonearm lift, adjustable counterweight & antiskating |
| Audio output | RCA (Cinch) L/R |
| Power supply | Mains operation (AC/DC adapter 12 V / 0.5 A) |
| Dimensions (W x D x H) | 41.6 x 35.1 x 12.0 cm |
| Color | Black / Brushed aluminum |
| GTIN / EAN | 4005425011606 |
FAQ – Frequently Asked Questions about the PL790SW
How do I connect my Bluetooth headphones to the PL790SW?
Activate Bluetooth mode on the turntable. Put your headphones or speaker into pairing mode. The device automatically searches for nearby receivers. The blue LED flashes during the search and stays lit once the connection is successfully established.
Do I need a special phono input on my audio system?
No. The PL790SW has an integrated phono preamp. If your amplifier does not have a "PHONO" input, set the switch to "LINE-OUT". If you have a high-quality external phono preamp or a corresponding input, select "PHONO" to output the signal directly.
What does the antiskating function do?
The antiskating function compensates for the physical force that pulls the tonearm toward the center of the record. Correct adjustment keeps the stylus centered in the groove, minimizing distortion, optimizing channel separation, and reducing wear on your records.
Which replacement stylus do I need for this model?
The PL790SW is designed for Audio-Technica’s moving-magnet cartridge. As a suitable replacement stylus, we recommend the original NADEL09 accessory to maintain the accustomed high sound quality.
How do I correctly set the tonearm tracking force?
First balance the tonearm horizontally by adjusting the counterweight. Then set the scale ring to zero and turn the weight to the value recommended for the cartridge (typically around 3 grams for the AT cartridge).
